Façade systems
The fischer façade systems business unit of the fischer Group of Companies offers innovative and high-quality all-in-one solutions for the secure and aesthetic installation of ventilated rainscreen façades. The company also offers a wide range of services, as the fischer specialists support planners and façade builders with consultation and calculation services from the briefing and installation stage across all construction phases until the project is successfully completed.
fischer’s all-in-one systems of compatible products with tested and approved individual components includes a comprehensive range of substructure solutions. With the acquisition of BWM Fassadensysteme GmbH from Leinfelden-Echterdingen in 2018, the fischer portfolio expanded considerably. fischer now offers various subframe systems for concealed and exposed fixing of rear-ventilated rainscreen facades from a single source.
To the fischer rainscreen facade adviser
The exposed and concealed fischer BWM facade system solutions are suitable for all standard cladding materials for ventilated rainscreen facades and fulfil all requirements on buildings regarding aesthetics, sustainability and energy efficiency. The modern façade technology also provides a healthy indoor climate, as rear-ventilated rooms constantly dissipate the moisture from the structure and living spaces.
Highlights of fischer façade systems:

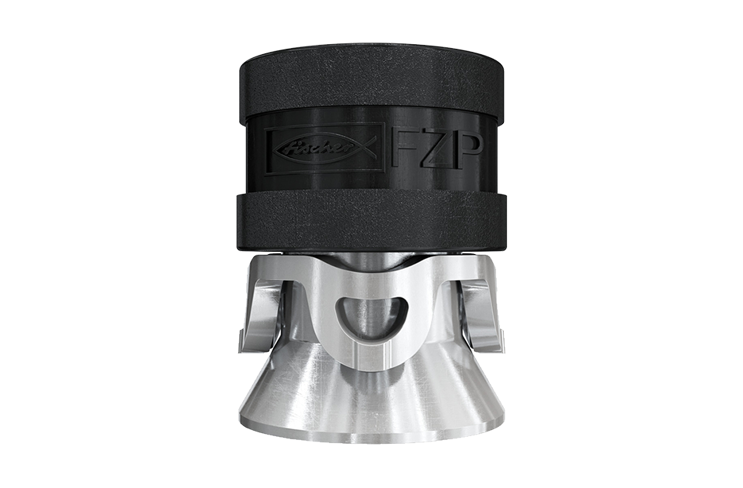

The fischer Zykon panel anchors FZP II enable the concealed fixing of façade panels in ventilated rainscreen façades. They ensure a inter-locking and therefore completely stress-free fixing in an conical drill hole. By attaching the undercut anchors to the back of the panels, the fixing solution is not visible from the façade side and is therefore visually appealing.
The façade system for concealed fixing of façade panels consists of a vertical and horizontal subframe system. Components of the vertical level are wall holders and vertical profiles as well as necessary connectors and fixings. The horizontal level consists of profiles and clasps. Undercut anchors connect the façade panels with the horizontal components of the subframe system.
The façade system for exposed and direct fixing of façade panels consists of the vertical subframe system ATK 100. Components of the vertical level are wall holders and vertical profiles as well as necessary connectors and fixings. The façade panels are exposed fixed to these vertical profiles with rivets or self-tapping screws, exposed clamps or a glued solution.
The fischer facade systems offer solutions for each and every cladding material.
Our product highlight
Concealed flush or stand-off installation solution with internal thread for natural stone façade panels. This technology can be used for both flush mounting of calibrated panels or reveal panels and to adjust tolerances in panel thicknesses by using the stand-off installation technology. Due to the integrated internal thread, there is no protruding external thread, allowing the panels to be prefabricated and transported in a space-saving manner. This improves the economic efficiency and flexibility of the system.
