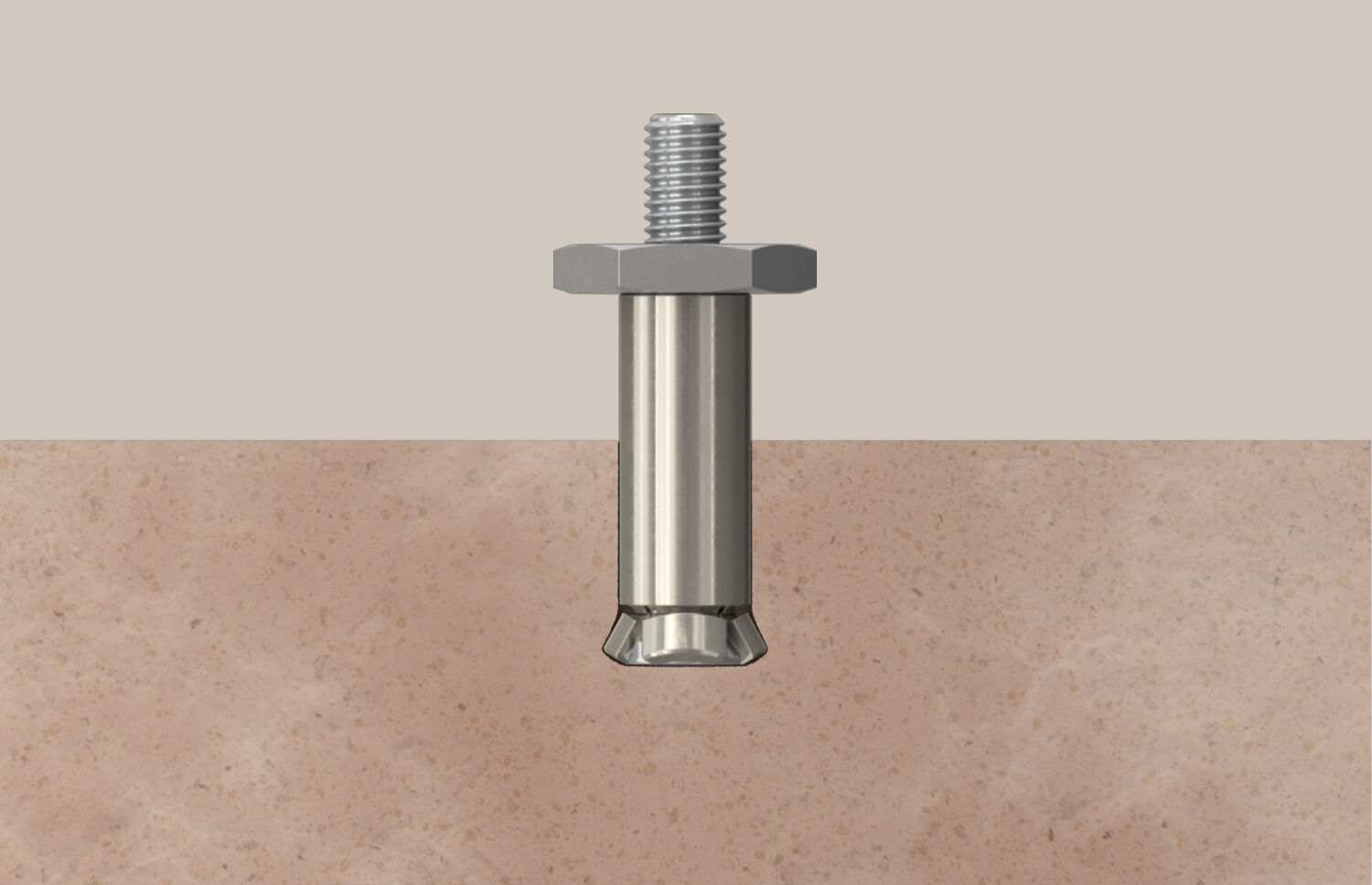

      The undercut anchor for soft stone façade panels.

      FZP II SH Zykon ankkuri julkisivupaneelille

      The concealed stand-off installation solution for heavy façade panels made of selected soft natural stone (stone group IV - sedimentary rock). This technology defines a constant distance between the front of the panel to the connection face on the FZP II anchor (RWT = remaining wall thickness) as a reference dimension for drilling. This technology can be used to compensate panel thickness tolerances and create a flat façade surface by using stand-off installation anchors.
      Tuotevaihtoehdot
      Download of image data

      Tuotevaihtoehdot

      2 Tuotevaihtoehtoa
      Levyn min. paksuus
      Kokonaispituus
      Kierre
      Cylindrical diameter
      Undercutdiameter
      Määrä
      2 tuotevaihtoehdosta katsottu 2

      Edut / Tuotekuvaus

      Edut
      • The adapted shape of the undercut anchor ensures a positive-locking attachment free from expansion pressure in a conical undercut drill hole.
      • The fixing of the undercut anchor is not visible on the exposed side, creating a visually attractive and consistent façade surface.
      • Setting the anchor using undercut technology allows the user to always select the optimal structural position in the façade panel. This greatly reduces panel deflection.
      • The anchor allows for higher pull-out loads, compared to commonly available systems.
      • Using a constant remaining wall thickness as a reference value when drilling holes allows users to compensate panel thickness tolerances.

      Hakemus ja hyväksyminen

      Kokoamisohje

      Toimintaperiaate / asennus
      • Wet diamond drilling - first cylindrical to a constant reference dimension for the remaining wall thickness (RWT), then conical to create an undercut drill hole.
      • When the undercut anchor is installed, an optimal positive-locking connection is created between the expanding part and the drill hole.
      • The anchor is installed in the conical undercut drill hole using stand-off installation.
      • The ability to compensate for panel thickness tolerances helps create a flat façade surface.
